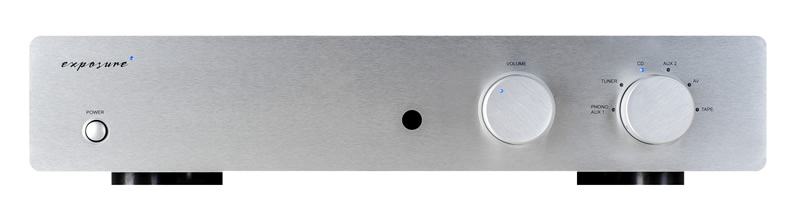

3010S2 D Pre-Amplifier |
Large custom made toroidal power transformer and smoothing capacitors for power supply
Option to fit a MC or MM phono module OR plug in DAC option
6 line inputs or 5 plus optional phono card, 2 main out (RCA) and 1 tape output
High quality relays used for input source selection
Full remote control of input selector, volume and mute
Audio output stages utilising discrete transistor class A output buffer
High quality all aluminium case work
Remote control
Three year guarantee
Available in black or titanium
|
增益 (在1KHz): |
+18dB |
靈敏度: |
250mV |
最大輸出: |
>10V RMS |
頻率響應: |
-3dB at 1Hz and 56KHz, ref. 1KHz, max volume
|
總諧波失真: |
<0.01% @ 1.6V RMS output, 1KHz |
訊噪比: |
>96dB, A weighted, ref. 1.6V RMS output, 1KHz |
聲道分離: |
>60dB 20Hz to 20KHz (典型地 > 85dB@ 1KHz)
|
輸出: |
2 對 RCA, pre amp 輸出, 1 對 tape 輸出 |
電源供應: |
110V~ 60Hz (出廠前設定)
|
消耗功率: |
<25W |
尺寸 H x W x D: |
90mm x 440mm x 300mm |
淨重 (unpacked): |
5kg |
總重 (packed): |
7kg |
|
